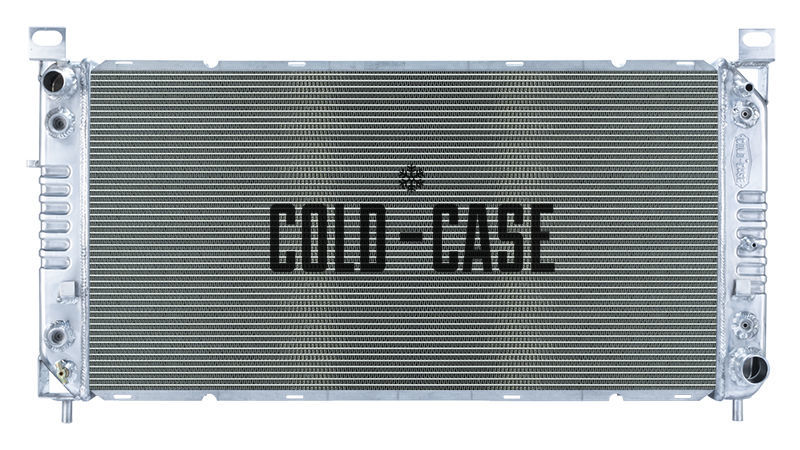

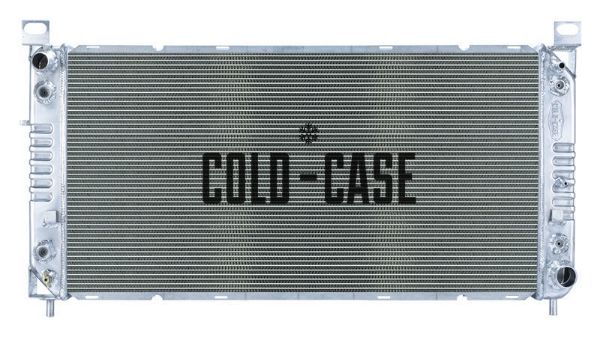

Cold Case Aluminum Performance Radiator for 99-12 GM Trucks w/ Oil Cooler

Aluminum Performance Radiator for 99-12 GM Trucks w/ Oil Cooler
SKU: GMT569A
Manufacturer: Cold Case Radiators
$416.13

1999-2012 Chevy/GMC Truck Aluminum Performance Radiator. This radiator HAS the oil cooler. GMT570A is the radiator WITHOUT the oil cooler.

These COLD-CASE radiators are Tig welded 100% aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

-100% TIG welded
-All Aluminum
-2 Rows of 1.25" tubes
-Polished OE style tanks
-16 fins per inch
-Corrugated fins that give more surface area and more thermal transfer
-Pressure tested
-For automatic trans
-Direct fitment for 99-12 GM Truck

Radiator Specs

Core Height17.25"
Core Width34"
Overall Height21"
Overall Width40"
Overall Thickness3"
Tubes(2) 1.25" Tubes
Upper Hose1.25"
Lower Hose1.50"
Trans Cooler Fitting Size:
3/8 Inch Inverted Flare

1999-2012 Chevy/GMC Truck Aluminum Performance Radiator. This radiator HAS the oil cooler. GMT570A is the radiator WITHOUT the oil cooler.

These COLD-CASE radiators are Tig welded 100% aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

-100% TIG welded
-All Aluminum
-2 Rows of 1.25" tubes
-Polished OE style tanks
-16 fins per inch
-Corrugated fins that give more surface area and more thermal transfer
-Pressure tested
-For automatic trans
-Direct fitment for 99-12 GM Truck

Radiator Specs

Core Height17.25"
Core Width34"
Overall Height21"
Overall Width40"
Overall Thickness3"
Tubes(2) 1.25" Tubes
Upper Hose1.25"
Lower Hose1.50"
Trans Cooler Fitting Size:
3/8 Inch Inverted Flare
