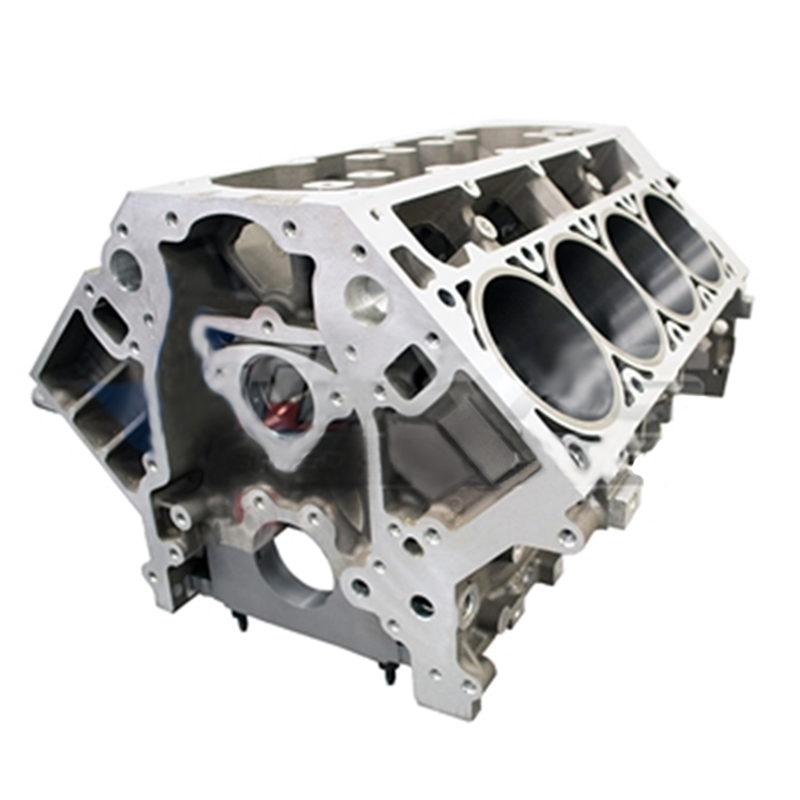

Driven Speed Performance is proud to offer our Gen 4 resleeved aluminum GM engine block using state-of-the-art, American made dry sleeves! We are machining and installing Darton sleeves at our facility using new GM Gen 4 aluminum blocks using only the best CNC equipment available. Darton sleeves have steps in them to alleviate the possibility of ever "dropping" a sleeve, which could be a problem with straight sleeves. We are using two different size sleeves that will allow for bore sizes from 4.00" all the way up to 4.125"!
Darton sleeves offer a much higher tensile strength than standard GM sleeves, and you also get a much thicker sleeve that will not distort as much under extreme conditions such as boost or nitrous use. Darton sleeves are 100% made in the USA for the best quality possible! Blocks such as the LS3 and LSA have incredibly thin sleeves from GM, so the resleeved block is a great option for those needing thicker sleeves for more extreme builds. The LS7 block is well known for having brittle sleeves that crack under higher horsepower, which usually cracks the aluminum behind the sleeve as well. Resleeving the block before there is an issue is a great option that can save you money in the long run from a catastrophic failure.
- Accommodates 900+ HP Builds
- Uses State-Of-The-Art 5.850” Length Darton Dry Sleeves
- Darton Sleeves Use Steps To Guarantee No Movement of Sleeve
- OEM GM Main Caps
- Bore Sizes Available from 4.000” to 4.125”
- All Blocks Supplied Are New GM Cores
Options:
- Add ARP Main Stud Kit
- Add ½” ARP Head Stud Kit With Labor for Machining
- Machine Work - Includes Cylinder Boring & Honing, Align Honing, Stroker Clearancing & Set Deck Height
If you select the option to add cam bearings, cylinder boring & honing, line honing, & finish decking, you will either need to purchase a crankshaft from us or send us your existing crankshaft to properly measure for the line honing. We will NOT line hone your block based on measurements that you supply.
NOTE: If 'Local Pickup' is selected, the block can be picked up at our Rainbow City, AL shop during normal business hours.
