Huron Speed 5th Gen Camaro SS Twin Turbo Kit

Huron Speed 5th Gen Camaro SS V2 Twin Turbo Kit

Kit Features:

• Fits V-band .82 or 1.06 inlet Turbos ranging from Billet 5858s up to Billet 6871s w/ E-cover compressor covers. This allows us to supply a very quick spooling set-up on a factory engine, up to 1300+ RWHP  capability!
• Full 3″ Stainless Steel DPs are standard, sending the exhaust back into the tunnel and our supplied X-pipe, further into supplied connection pipes back to the axle-back connection location using OEM hangers
• S&B Velocity stack screens for each turbo inlet
• Retains all OEM accessories in their OEM Locations less the Windshield Washer tank which we supply the bolt in replacement constructed from Stainless Steel so it can be used for a methanol tank as well if desired!
• Requires NO drilling/tapping for the oiling! Recommend  Comp Air-cooled turbos for extremely easy installation and zero hassles of oiling issues or running of lines.
• Extra strong .120 wall stainless hot-side that comes backed by a LIFETIME warranty as with the rest of the piping!
• Large 4″ Thick base Intercooler w/ air-guides to support 1000hp, larger upgrade options available as well!
• System feature a few higher flowing merge pipe on the cold-side as well as an easily removable straight section for simple oil-change access.
• System now sits over a full inch higher than the previous for even more ground clearance. Everything is still protected by our supplied bottom protection plate that also is moved up 1″ higher.
• Back by the Huron Speed Lifetime Warranty (see details on our home-page)
• Fitment note: If your AC hoses from the compressor run BEHIND the steering rack (we have seen on some later model cars, notably ZL1) then you will need to switch to the earlier model AC hoses that run on the front side of the steering rack, or else bend yours to clear the cold side. In some cases a new condenser may be required to mate to the older lines (again most notably later model ZL1)

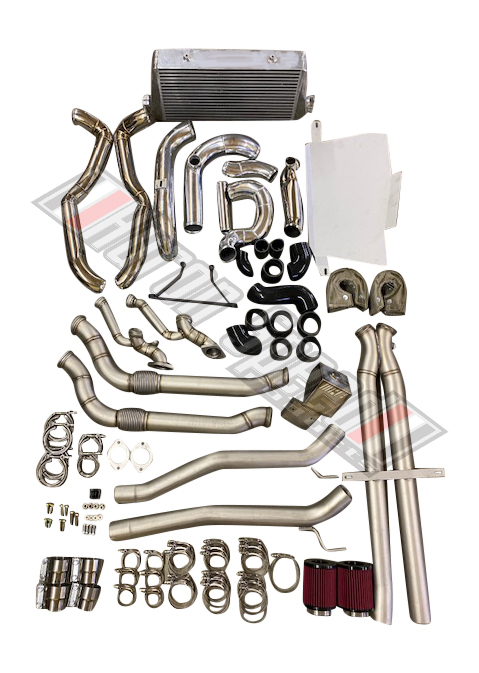

Included Components:

• Stainless extra thick .120 wall Tubular V-band inlet Hot-side tubes w/ 44-46mm WG flanges that mate to OEM Exhaust manifolds, shorty headers or our optional Tubular Stainless manifolds that clear 6-bolt heads
• Stainless Steel 3″ DPs that hug wide for excellent transmission clearance
• Stainless Steel 3″ X-pipe for excellent exhaust scavenging and sound
• Stainless Steel 3″ Mid-pipes that connect from the X-pipe back to the axle-back location using OEM hangers
• Polished Aluminum Cold Side Piping up to the Intercooler
• Polished Aluminum 3.5″ Cold-Side Piping into Throttle Body w/ 50mm BOV flange and OEM MAF sensor flange.
• REVISED – New orders will receive new short style Inlet tubes and filters for a much higher flowing combo!
• Base 4″ thick Air-to-Air Intercooler supports plenty of flow, with optional Intercooler upgrades available as well
• All new easy to install 1-piece Intercooler mounting bracket
• All required silicone couplers and T-bolt clamps
• Pair of Turbo Blankets
• Air Filters for both Turbo Inlets
• All required Grade-8 Hardware
• Piping kit only, requires other items noted to run, vehicle will not run without these outside sourced items completed by you, therefore sold as show only.

Optional Components:

• Full 3″ Muffler-less exhaust exiting the rear w/tips for single exit tip rear bumpers
• Tubular Stainless Steel extra thick .120 wall Manifolds to clear 6-bolt heads
• Turbochargers from Comp Turbo or Precision Turbo
• Wastegates from Huron Speed, Precision Turbo or Turbosmart
• BOV from Huron Speed, Precision Turbo or Turbosmart
• Boost/Vacuum Line setup with Huron Speed CNC log, fittings, 1/4″ Vacuum hose and clamps
• Fueling upgrades from Fore, FIC Injectors, ADM Performance
