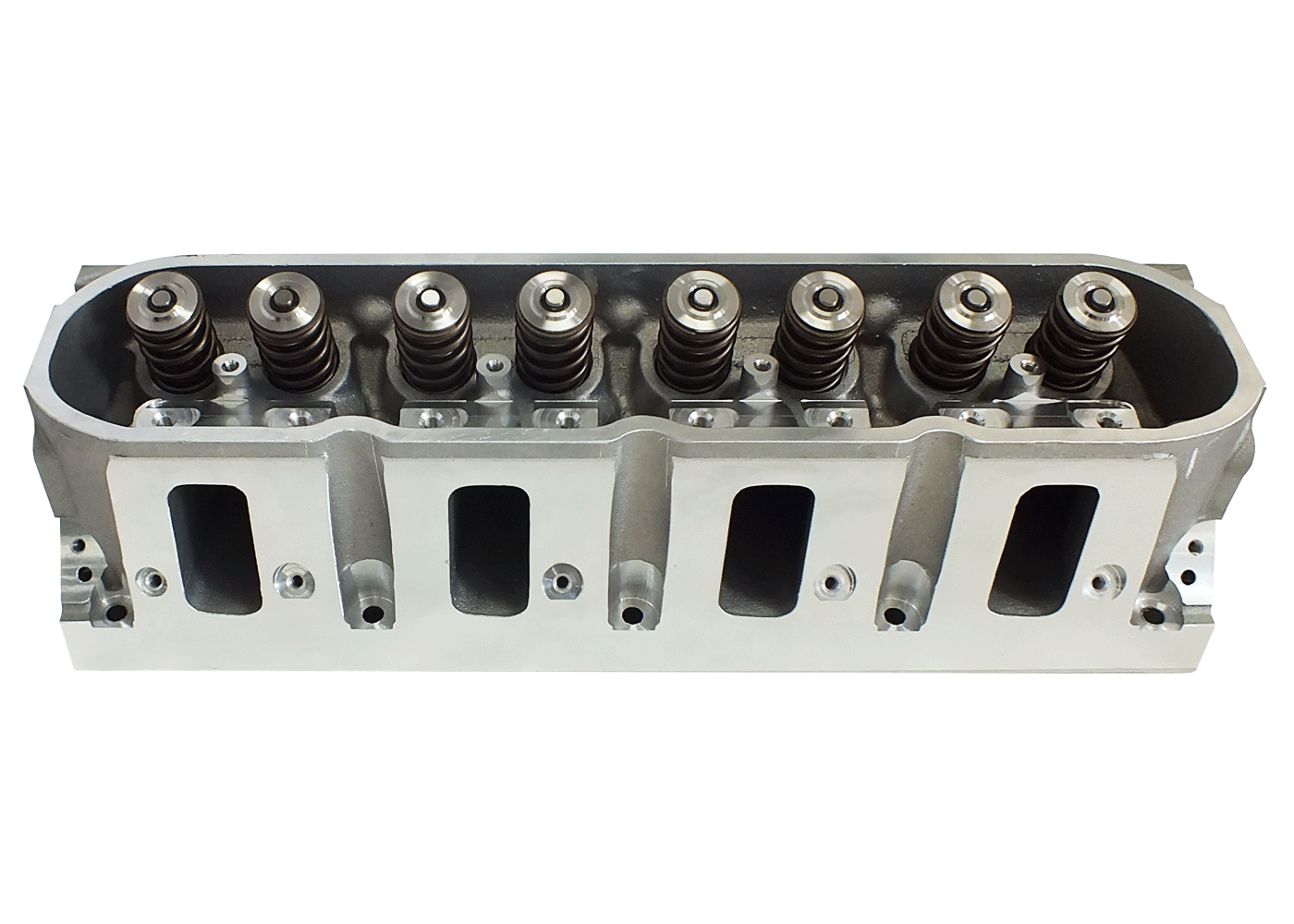

LPC 255cc LS3 Aluminum Cylinder Heads

SKU: LPH-LS3-2
$1,399.98
255cc Intake Runner, 72cc Combustion Chamber, 11° Rectangular Port, Assembled (priced per pair)
+ -

Liberty Performance Aluminum Heads are the perfect replacement or upgrade for your LS-based engine. Starting with a new aluminm casting these heads are fully assembled with all new componenets including intake valves, exhaust valves, valve springs, retainers , guides, and seats. Made from 355-T6 high density aluminum, that is solution heat-treated and artificially aged to exceed standards.



MATERIAL 355-T6 High Density Aluminum
APPLICATION LS3 Block Chevy
ASSEMBLED OR BARE Assembled
INTAKE RUNNER 255cc
CHAMBER VOLUME 72cc
MAX LIFT .650″
INTAKE VALVE DIAMETER 2.165″
EXHAUST VALVE DIAMETER 1.590″
VALVE STEM DIAMETER 8mm
SINGLE OR DUAL SPRING Dual
VALVE SPRING OD 1.295″
SPRING SEAT DIA 1.560″
VALVE GUIDE OD .500″
SPARK PLUG TYPE 3/4 Reach, Tapered Seat
