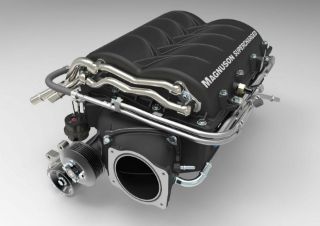

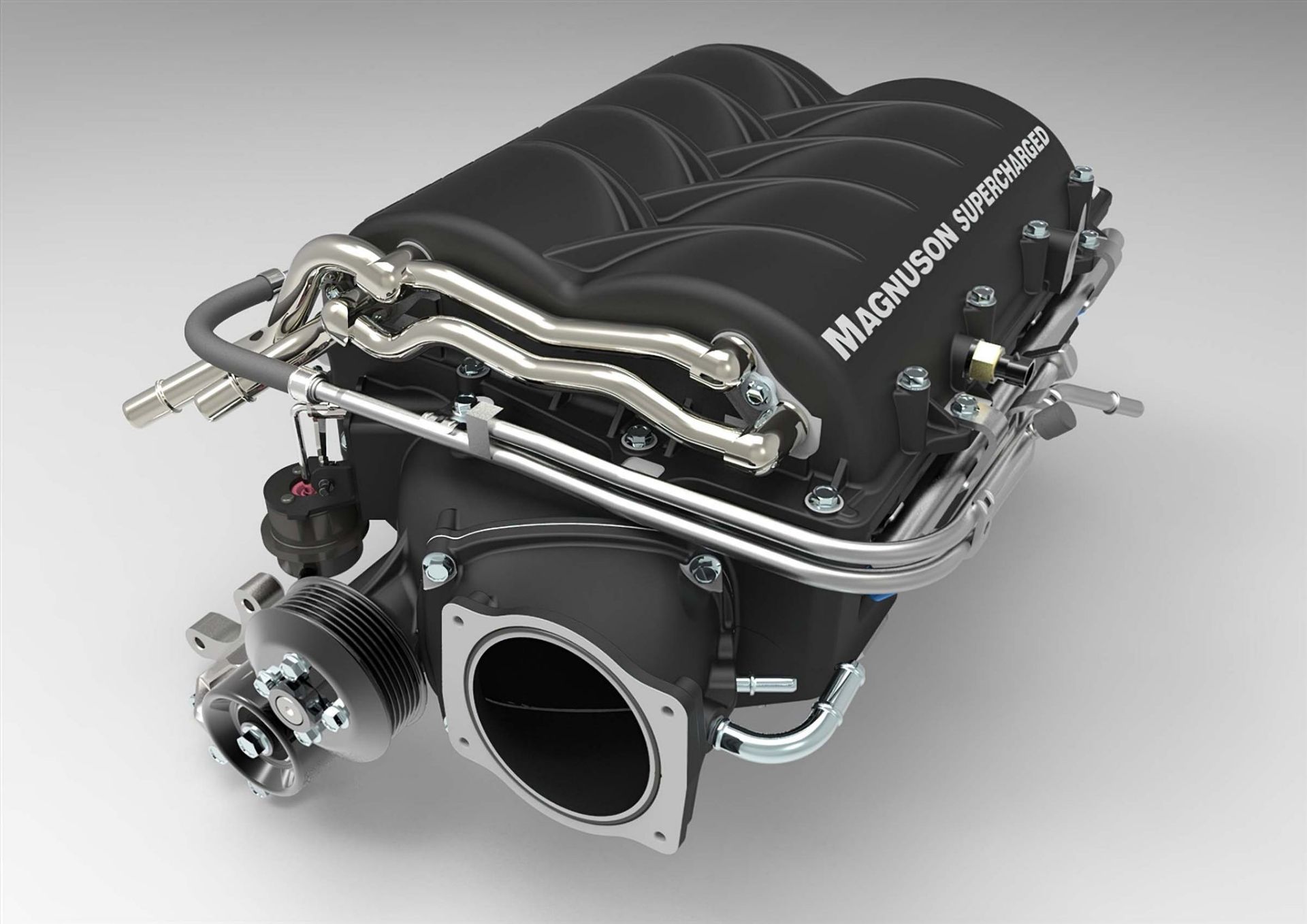

The most powerful TVS2300 underhood Corvette Supercharger on the market
Magnuson is proud to announce our brand new under the hood Heartbeat supercharger system for the Chevrolet Corvette C6. We ran back-to-back tests with our original TVS2300 modular supercharger, and the competition's TVS2300 underhood supercharger. With the provided tune and pulleys, Heartbeat made 25 more horsepower at the wheels than our modular kit, and a whopping 46 more horsepower at the wheels than the competition's underhood system. Tested by two of the most respected engine builders in the industry, Lingenfelter Performance Engineering and Duttweiler Performance, Heartbeat made over 900 HP at a mere 10-11 psi, a credit to it's unsurpassed airflow and inlet design.
Run cooler with the most advanced intercooler system available
Heat soak can be a problem in underhood supercharger systems, robbing more than half the power gain in the summer heat or after a few dragstrip runs. Heartbeat features integrated intercoolers derived from the same technology used in Formula 1 and NASCAR heat exchangers. Unlike other underhood supercharger systems, customers report low IATs and consistent performance all day long.
- TVS2300 Heartbeat Hybrid-roots supercharger
- Clears the factory Corvette hood and requires no body modifications (* requires removal of the hood liner, or maintain the factory hood liner with 0.25" subframe spacers from Lingenfelter)
- Weighs 17 pounds less than the standard TVS 2300
- TVS2300 Front-Inlet Front-Drive rotors, utilizes the same Eaton technology as the Corvette ZR1 LS9
- Provides cooler discharge temperatures than comparable twin-screw systems
- Advanced high-flow inlet forward design
- Includes Twin dual-pass charge-air-coolers utilise Formula-1 racing thermal-control technology
- Acoustically designed to minimize noise, vibration, and harshness (NVH)
- Better air-handling characteristics than comparable superchargers
- 100% complete bolt-on system which can be installed in one day
- More power in a smaller package
- Internal Bypass Valve virtually eliminates parasitic loss (uses less than 1/3 of a horsepower at 60 mph)
- Delivers a proven increase in real world "under the curve" power
- High thermal efficiency
- 2.4 pressure ratio capability
- High helix four-lobe rotors with 160 degrees of twist
- Redesigned inlet and outlet ports
- Utilizes all factory "push-lock" connectors
- Displacement on demand hardware retained for improved fuel economy
- Components have been independently tested to GM’s specification
Fitment
- 2008-2013 Chevrolet Corvette LS3 6.2L V8
