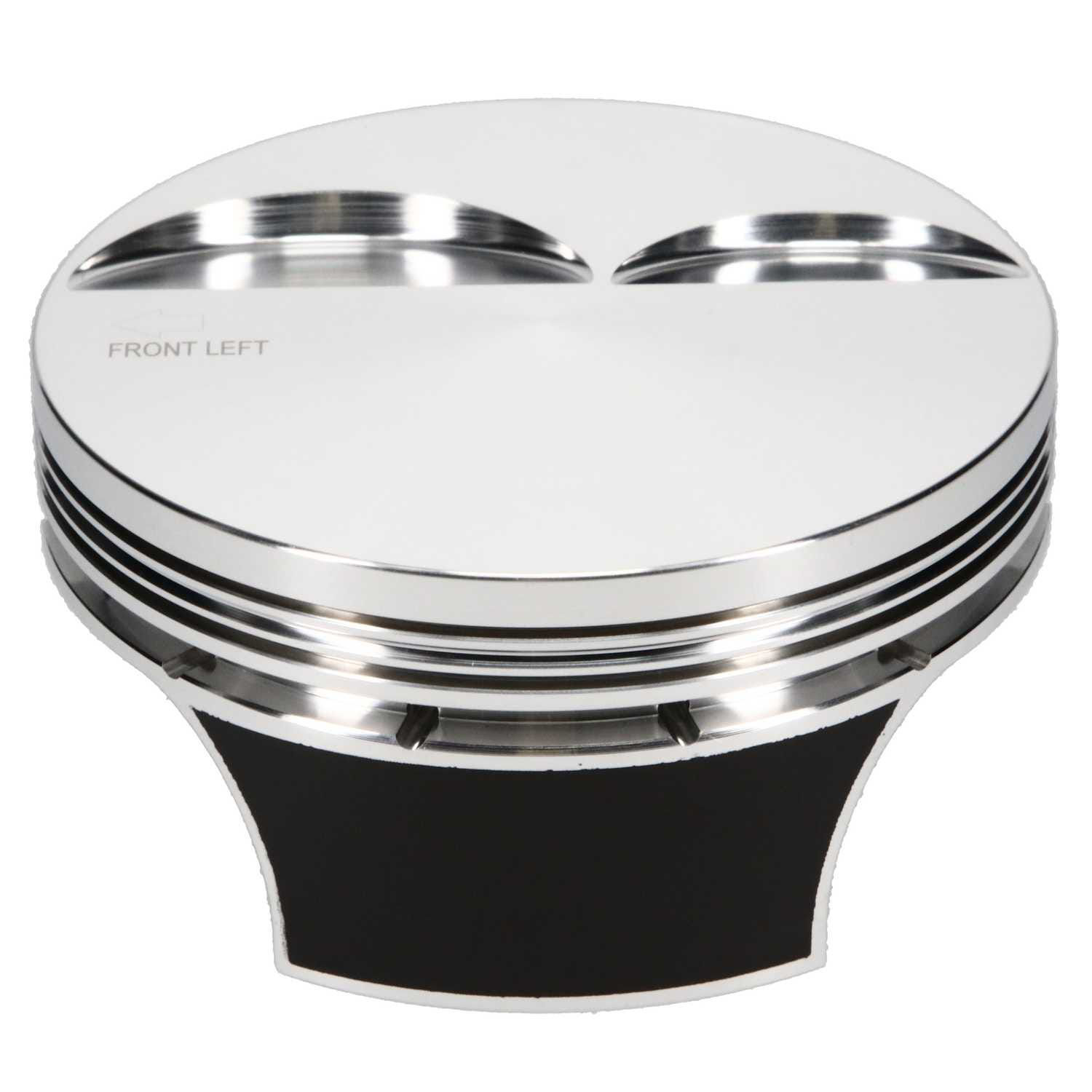

Piston Set, 4032, Flat Top, 4.030 Bore, 1.315 CD, 0.927, Pin Dia, Set of 8.
| Bore (in) | 4.03 |
|---|
| Bore (mm) | 102.36 |
|---|
| Top Compression Ring Thickness | 0.0480 |
|---|
| Second Compression Ring Thickness | 0.0600 |
|---|
| Oil Ring Thickness | 0.119 |
|---|
| Forging Type | FSR |
|---|
| Volume (cc) | -5.00 |
|---|
| Series | SRP Professional |
|---|
| Piston Head Type | Flat Top |
|---|
| Pin Diameter (IN) | 0.927 |
|---|
| Compression Height | 1.315 |
|---|
| Make | CHEVROLET |
|---|
| Wrist Pin Style - floating or press fit | Floating |
|---|
| Wall Type | CHAMFERED |
|---|
| Wall Thickness (IN) | 0.150 |
|---|
| Ringset Part Number | JG31F1-4030-2 |
|---|
| Ring Brand | ProSeal |
|---|
| Ringset Included | Yes |
|---|
| Retainer Thickness | 0.073 |
|---|
| Retainer Lock Style | Wire Lock |
|---|
| Retainer Lock Part Number | 927-073-MW |
|---|
| Retainer Diameter (IN) | 0.927 |
|---|
| Piston Pin Inside Diameter | 0.627 |
|---|
| Piston Pin Material | 5115 LOW CARBON STEEL, CASE HARDENED |
|---|
| Piston Material | 4032 |
|---|
| Piston Pin Length (IN) | 2.250 |
|---|
| Piston Avg Wt | 430 |
|---|
| Pin Offset | Yes |
|---|
| Pin Brand | JE Pistons |
|---|
| Pin Part Number | 927-2250-15-51C |
|---|
| Pin Included | Yes |
|---|
| Pin Diameter (mm) | 23.55 |
|---|
| Oil Rail Support Included | No |
|---|
| Deck Clearance | 0.000 |
|---|
| Brand | SRP |
|---|
