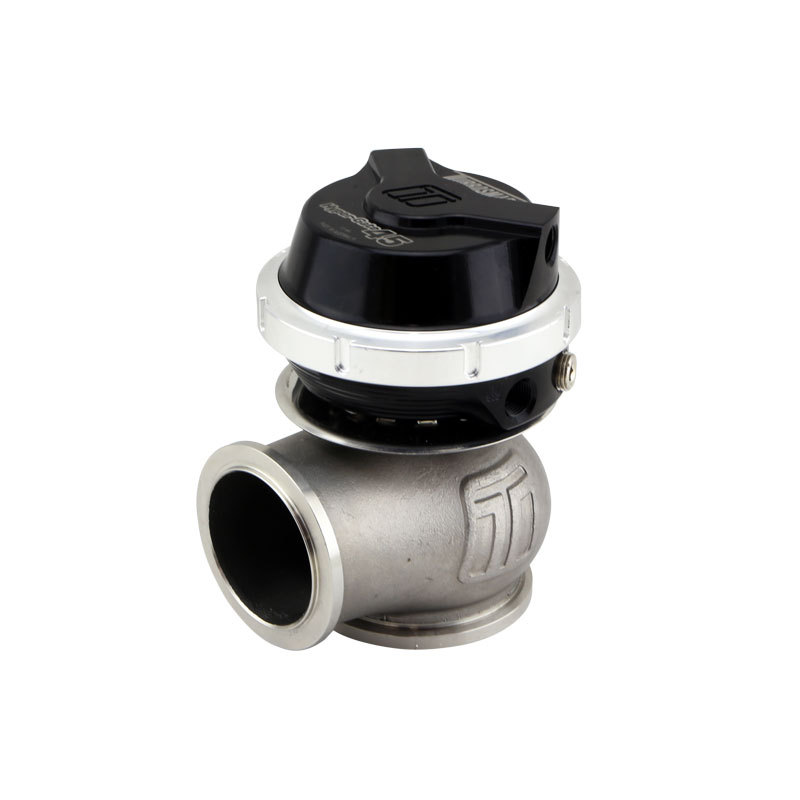

The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management; the GenV Range has more features, options and performance than any other gate.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Features:
- Class Leading Thermal Performance
- Class Leading CFD & Bench Validated Flow Performance
- Class Leading Fatigue Resistance
- Optional Liquid Actuator Cooling
- Optional Position Sensor Available Seperately
- Rotatable / Clock-able Actuator Housing
- Nitronic 60 Valve Guide & High Temp 347 SS Body
- 17-7 PH Stainless Steel Springs
- Strap Type V-band clamps
What's in the box:
- GenV Wastegate unit
- All Springs Included
- 3.5.7.14psi (1 Inst. As per Description)
- Locking Collar Tool
- GenV SS316 Valve seat
- Strap Type V-Bands
- Inlet & Outlet Weld Flanges
- Hose Tail & Blank Fitting Kit
- Turbosmart Decal
